Configuration ranges, then a project quote

A refrigerated body is priced per project, not from a price list. Length, zone count, door positions, refrigeration system, delivery distance, and order volume each move the number. Each configuration below shows a planning range so you can budget before you call.

Configurations

Body configurations and planning ranges

All figures are in US dollars, cover the body only, and exclude chassis, refrigeration supplied by the customer, and freight.

Duo-Zone 12

12–14 ft insulated body · two temperature zones

$24,000 – $31,000

per body · planning range

Final price is quoted per project.

Includes

  • 12–14 ft insulated body, foam-core sandwich panels, 3 in walls and ceiling, 4 in floor
  • Two independent temperature zones with one sealed fixed insulated bulkhead
  • Two evaporators with independent digital setpoint controllers
  • Two insulated rear doors and one gasketed side access door
  • Ribbed aluminum anti-slip floor with front drainage
  • Stainless-steel hinges, retainers, and EPDM gaskets
  • Zone map and setpoint schedule documents
  • 24-month structural warranty

Moves to the top of the range

  • Body length above 14 ft, or a second side access door
  • A removable bulkhead instead of a fixed one
  • Integrated refrigeration instead of a customer-supplied unit
Best for

Owner-operators and single-route distributors moving frozen and chilled product together who need a first zoned body at the lowest entry cost.

Request a Quote
Most requested

Tri-Zone 16

16–18 ft insulated body · three temperature zones

$36,000 – $47,000

per body · planning range

Final price is quoted per project.

Includes

  • 16–18 ft insulated body, foam-core sandwich panels, 3 in walls and ceiling, 4 in floor
  • Three independent temperature zones with two sealed insulated bulkheads, one removable
  • Three evaporators with independent digital setpoint controllers
  • Three insulated rear doors with sequential openers plus two side access doors
  • Per-zone airflow ducting sized to the load plan
  • Ribbed aluminum floor with drainage and reinforced fork-entry thresholds
  • Temperature monitoring with per-zone data logging
  • Zone map, setpoint schedule, and sealing service guide
  • 36-month structural warranty plus one sealing inspection in the first year

Moves to the top of the range

  • Body length above 18 ft on a longer wheelbase
  • A second removable bulkhead for a four-stop layout
  • Late setpoint changes that require re-ducting a zone
Best for

Grocery, foodservice, and dairy fleets running multi-stop routes where the order mix changes week to week and each stop receives more than one temperature category.

Request a Quote

Fleet Build Program — Multi-Zone 20–24

20–24 ft insulated body · three to four configurable zones

$58,000 – $82,000

per body · planning range

Fleet programs of four or more units are quoted as a program.

Includes

  • 20–24 ft insulated body built to a fleet-standard specification
  • Three to four configurable zones with customer-specified bulkhead positions
  • Reversible insulated partitions for routes that change seasonally
  • Dedicated engineering layout built from the customer's load plan and route data
  • Fleet-standard hardware, panels, and controllers so parts interchange across units
  • Refrigeration integration, ducting, control wiring, and setpoint configuration
  • Per-vehicle zone verification record at handover
  • Priority production slot and quarterly service visits for the first year
  • 48-month structural warranty

Moves to the top of the range

  • Four zones rather than three, or a 24 ft body
  • Reversible partitions on every bulkhead
  • Full refrigeration integration across the whole fleet order
Best for

Regional fleets standardizing four or more vehicles on one specification, where interchangeable parts and a documented zone record matter as much as the body itself.

Request a Quote
Quote drivers

What moves a quote

Every quotation is assembled from the same inputs. Change one input and the price moves.

Input What it changes
Body length and internal volumePanel and floor area, insulation quantity, production hours
Zone count and bulkhead typeFixed, removable, or reversible partitions, and evaporator count
Door positions and layoutRear and side door count, sequential openers, gasket sets
Refrigeration systemCustomer-supplied unit versus integrated system, ducting, control wiring
Insulation and floor specificationWall, ceiling, and floor thickness, ribbed aluminum, drainage, reinforcement
Monitoring and documentationPer-zone controllers, data logging, zone maps, verification records
Delivery distance and methodFreight by destination ZIP code, or a flat-shipped kit
Order volumeSingle body versus a fleet-standard specification across several units

A written quotation is issued after the load plan and chassis details are reviewed, and it holds its price and lead time for 30 days.

Refrigerated truck bodies lined up in the production bay
Bodies completed to the order confirmation, staged before the verification run and shipment.

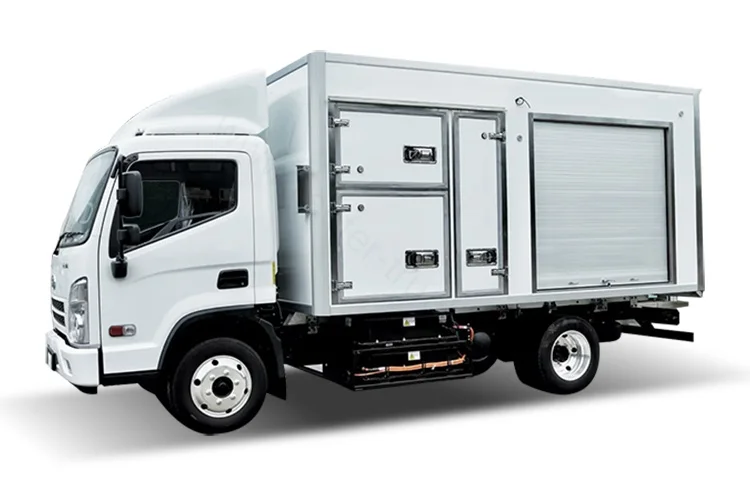

Multi-temperature zone refrigerated truck box with centre partition
Centre partition and door layout set from the load plan, so each zone is loaded and unloaded independently.
Add-ons

Add-ons

Add-ons are quoted per project and vary with body length, zone count, and mounting position.

Add-On Planning range
Additional removable insulated bulkhead$2,900 – $3,600
Zone temperature data logger with 12-month record$1,700 – $2,200
Lift-gate floor reinforcement package$2,200 – $2,800
Secondary side door with gasket set$1,300 – $1,700
Stainless-steel meat rail system$2,500 – $3,200
Insulated door curtain set$580 – $760
Zone Layout & Load Plan Engineering as a standalone service$1,900 – $2,600
Volume

Volume treatment

Volume adjustments apply per order and are calculated on the quoted body price.

Bodies per Order Volume treatment
1–2Quoted per body
3–55% volume adjustment
6 or more9% volume adjustment, fleet-standard specification available

What every configuration includes

  • Engineering review of the load plan before production begins
  • One named project contact from order through handover
  • Pre-delivery setpoint verification with a printed zone record
  • Written zone map and setpoint schedule for the delivered body
  • Replacement part availability for a minimum of 8 years from delivery

What is not included

  • Chassis and truck cab
  • Refrigeration compressor unit, where the customer supplies its own
  • State or federal registration, permits, and road-use fees
  • Out-of-network installation labor, quoted by ZIP code at the time of order
  • Sales tax, duties, and any local fees assessed at the delivery address
Terms

Payment and delivery

Order confirmation lists zone count, zone volumes, door layout, floor type, and setpoints.
Term Detail
Quotation Written quotation valid for 30 days from issue; price and lead time are firm for that period
Deposit 30% deposit to reserve a production slot, balance due before shipment
Production lead time 6–9 weeks for full bodies, 3–5 weeks for flat-shipped kits
Freight Quoted by destination ZIP code; pick-up at Louisville, Kentucky at no freight charge
Order confirmation Written confirmation listing zone count, zone volumes, door layout, floor type, and setpoints

Ready for a project quote?

Send the chassis details and your load plan. We will confirm the zone layout, return a written quotation with a firm price, and hold it for 30 days.
